DROP BOX TEST RIG- TRACTORS

MACHINE DESCRIPTION :

A DROP BOX is a part of a Tractor Transmission and enables to engage and disengage the Front wheel/Four wheel  drive of the Tractor.

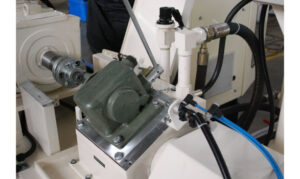

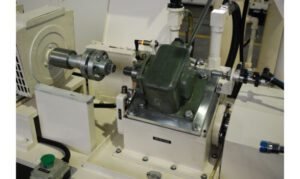

The DROP BOX TEST RIG is a customised test rig manufactured to test the operation of this Drop Box assembly before mounting on the Tractor Transmission.

MACHINE FEATURES :

  • Customized Test rig for Testing the DROP BOX assembly
  • Rigid and Robust design.
  • Variable input speeds through ACVD controlled induction motor.
  • Drop Box tested under load.
  • Loading through a specially designed loading unit with settable load values.
  • Programmable test parameters
  • Automatic Oil filling and Draining before and after test.
  • Manual Shifting of Gears. Automatic shifting available on request.

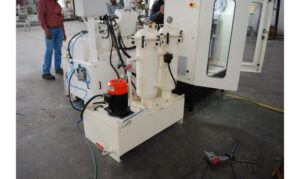

  • Closed Loop Oil Filtration unit.
  • Interlocks for Oil level to avoid damage to components.
  • Poka yoke for unit under test.

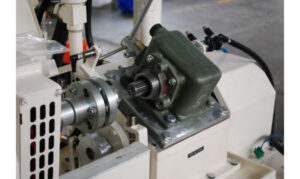

  • Ease of engagement with loading unit through Splined adapters.
  • Flexible couplings to accommodate any misalignments.
  • PC+ PLC based system for control and data acquisition.
  • Dedicated software available on request.
  • Barcode Scanning and Printing facility available on request.
  • Multiple program options for different variants.

PARAMETERS MEASURED :

  • Input Speed
  • Output Speed
  • Gear ratios
  • Loading value
