CYCLE HUB TEST RIG

MACHINE DESCRIPTION :

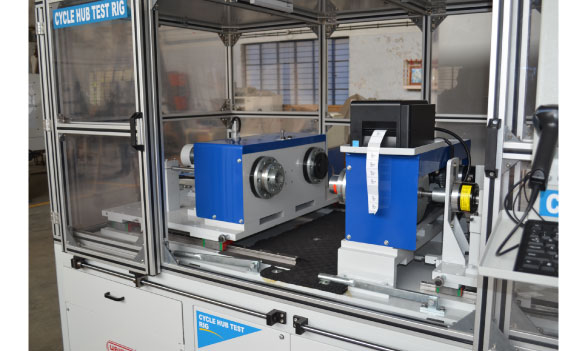

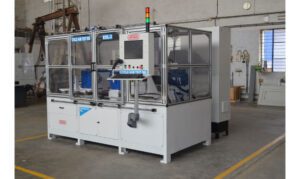

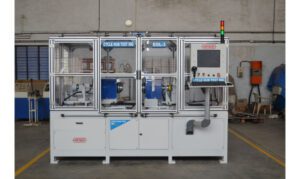

CYCLE HUB TEST RIG customized machine design and built to test CONSTANT VARIABLE TRANSMISSION of a cycle.

MACHINE FEATURES :

  • Customized Test rig for Testing CYCLE HUBS
  • Rigid and Robust design for Endurance testing of CYCLE HUBS
  • Suitable design to test different variants of CYCLE HUBS

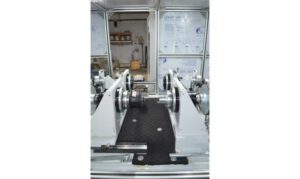

  • Suitable for Testing HUBS for loading (uphill)and coasting (downhill) condition.
  • Testing of CYCLE HUBS under Load.
  • Accurate measurement of Torque through Torque transducers
  • Accurate measurement of Speeds through High resolution incremental encoders.
  • Data acquisition through NATIONAL INSTRUMENTS (NI HARDWARE)
  • Auto Engagement of Driving and Driven motors through slides.
  • Barcode scanning and Printing before and after test end.
  • Linking of Data with Customer MES Server.

PARAMETERS MEASURED :

  • Gear Ratios at High, Low and Medium ranges
  • Load Drop- Drop in Gear ratio under load
  • Efficiency of HUB
  • Statistical Analysis and Plotting of MAEC curve
  • Input and Output RPMs.
  • Shifting torque
  • Shifting Angle

ACCESSORIES:

  • Auto Door opening and closing with safety interlocks
  • Barcode Printer
  • Barcode Scanner

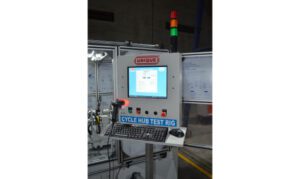

  • Industrial PC with Industrial UPS
