MACHINE DESCRIPTION :

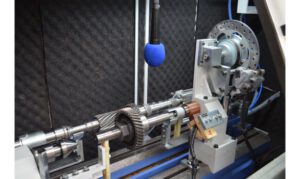

In an GEAR NOISE TESTER a Component Gear is meshed and run with its Mating Gear and set to a specific designed centre distance of assembly with designed backlash to ensure single flank contact. The machine has an acoustic canopy with a microphone mounted at a suitable position on the Meshing gears. The operator can hear the Gear noise through a headphone provision mounted outside the machine
MACHINE FEATURES :
MACHINE CAPACITY :
| SR NO | DESCRIPTION | SPECIFICATION |
| 1. | Maximum Diameter of Gear | 250mm |
| 2. | Minimum length of shaft type Gear | 150mm |
| 3. | Maximum length of Shaft type gear | 350mm |
| 4. | Minimum CD between mating gears | 60mm |
| 5. | Maximum CD Between mating gears | 135mm |
| 6. | Speed range | 500-3000rpm |
| 7. | Reciprocation arrangement | Settable 7-15mm stroke |
| 8. | Braking arrangement | Pneumatic operated shoe brake |
| 9. | Loading and Unloading | Manual |
ACCESSORIES :
