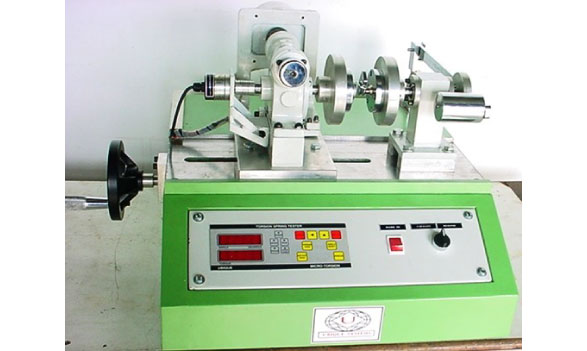

TORSION SPRING TESTER

MACHINE FEATURES :

Table Mounting fabricated structure with robust design
Loading Actuation: Motorized operated

: Manually operated

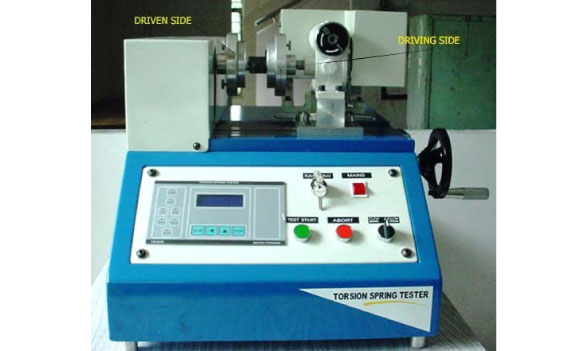

Adjustable Distance between Driving Flange & Reaction Flange.
Sample fixed on the machine using dedicated locators mounted on Driving Flange & Reaction Flange.

Measuring Units: Torsion Movement – Degree (LC 1º)

: Torsion Force – kgf-M /OR/ N*m

Instrumental Models: PC Interfaced Model with DAq of Degree Vs Torsion Load with Date Time

Stamp & OK/N-OK status.

: Basic Digital Display for instant readings of Torsion Movement & Torsion Force

Single Phase electric supply

MACHINE CAPACITY :

Suitable for Multi-turn to Partial-turn Torsion Springs
Maximum Spring Diameter: 150 mm (Higher capacities on request)
Torsion Force: 10 N*m (Higher capacities on request)

ACCESSORIES :

Dedicated Tooling for specific type of Torsion Spring
DAq in Loading as well as Unloading for verification of Hysteresis characteristics of sample torsion spring
