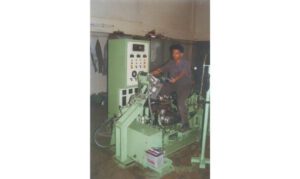

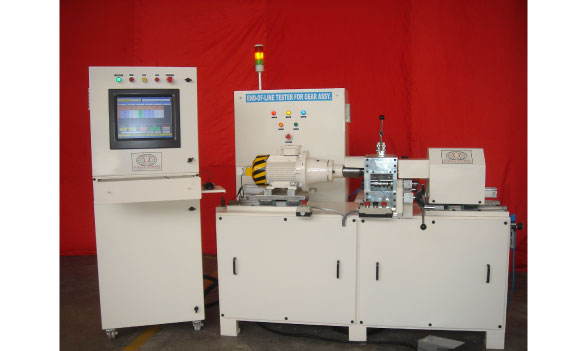

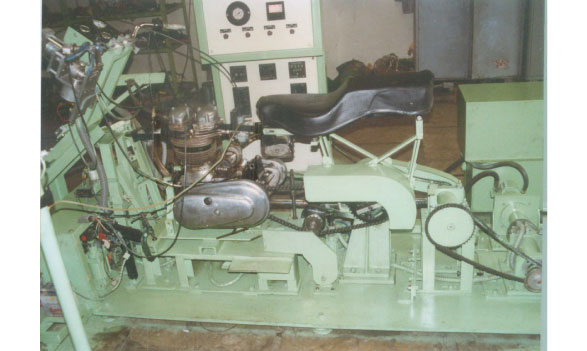

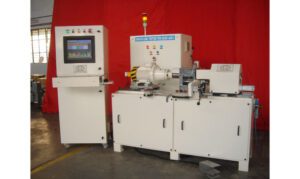

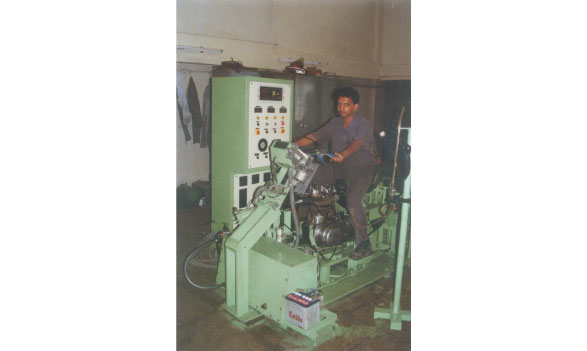

TRANSMISSION/GEARBOX TEST
RIG-TWO WHEELERS

MACHINE DESCRIPTION :

TRANSMISSION/GEARBOX test rig is a customized test rig designed and built suitably for testing Transmission/Gearbox of Two Wheelers for testing different parameters of the Gearbox.


MACHINE FEATURES :

  • Customized Test rig for Testing Transmission/ Gearbox of Two Wheelers.
  • Designed to adapt different types and variants of Transmissions
  • Suitable for Testing Transmissions for Loading(uphill) and Coasting(downhill) condition.
  • Variable Load value settings.
  • Variable Speeds of rotation.
  • Automatic adaptation of Transmission on Testing Fixture.
  • Auto engagement of Driving and Driven motors with the transmission.
  • Accurate measurement of Torque through Torque Transducers.
  • Accurate measurement of Speeds through high resolution incremental encoders

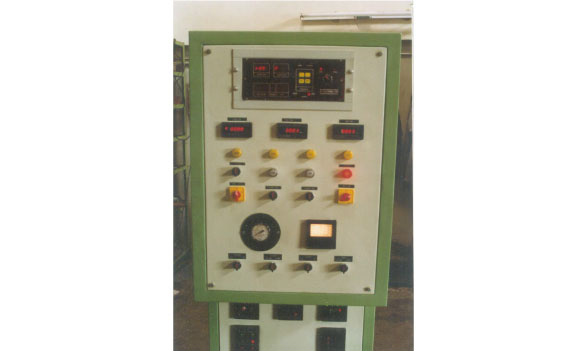

  • PC+ PLC based system with dedicated software developed on different platforms like Labview, SCADA and .net framework.
  • Linking of Data with customer MES Server.
  • Barcode scanning and Printing before and after test end.
  • Turnkey solutions including conveyors, oil filling, oil draining etc.

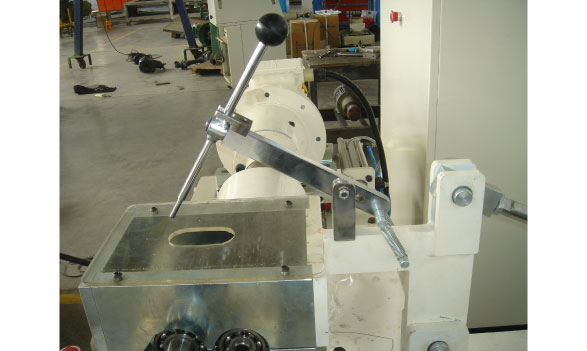

  • Auto Gear shifting.

PARAMETERS MEASURED :

  • Gear Ratios
  • Gear Crash
  • Gear Slippage
  • Gear Shift force
  • Gear noise under load.
  • Input and Output RPMs.
  • Noise Vibration and Harshness analysis of Transmissions.
