REAR AXLE TEST RIG

MACHINE DESCRIPTION :

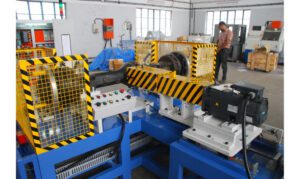

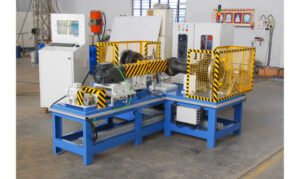

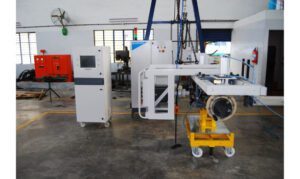

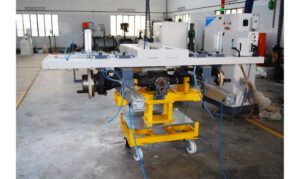

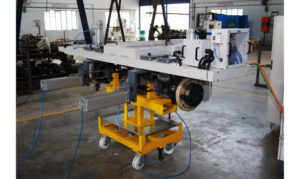

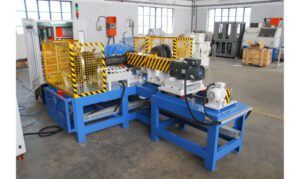

The AXLE TEST RIG is a customized test rig designed and built for Testing the REAR AXLES of the Passenger, Commercial and Heavy vehicles.

MACHINE FEATURES :

Customized Test rig for Testing REAR Axles of Passenger, Commercial and Heavy vehicles.
Designed to adapt different types and variants of Axles.
Variable Input Speed settings.
Provision of Braking at wheels to check Differential condition of Axle.
Automatic adaptation of Driving motor and Axle.
Accurate measurement of Torque through Torque Transducers
Accurate measurement of Speeds through high resolution encoders
PC+ PLC based system with dedicated software developed on different platforms like LABVEIW, SCADA AND .NET FRAMEWORK
Linking of Data with Customer MES Server.
Barcode scanning and Printing
Precise Oil filling arrangement
Forced or Gravity Oil Draining arrangement
Hydraulic actuation of Internal brakes of axle.

PARAMETERS MEASURED :

Gear Ratios
Speeds at Input and Output of Axle.
Speed differential in two outputs during differential lock condition
Differential assembly working
Torque to rotate
Direction of rotation
Noise Vibration and Harshness analysis of Axles.
